CMOS Crane Hook Camera

Basic Information
Place of Origin: China
Brand Name: RECEN
Certification: CE, ISO9001, SGS
Model Number: RC-105
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Cartons
Delivery Time: 5 - 10 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 SETS / YEAR
Detail Information
Type: Tower Crane Color: Black And White
Warranty: 12 Months Name: RC-SP
Function: Monitor Operating Temperature: -20~+60 ℃
High Light:

CMOS Crane Hook Camera


1920×1080 Crane Hook Camera


CMOS crane camera system

Product Description

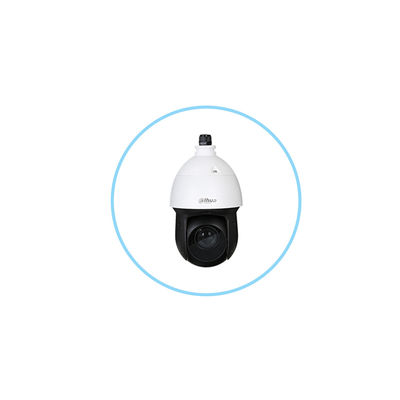

Tower Crane Hook Video Monitor Camera Device Auto Zoom Monitor Hook Camera System


Profile of the Video Monitor Camera System




Image sensor 1 / 2.8 inch CMOS, and the total pixel of the sensor is about 2.16 million pixels.
Horizontal resolution ≥1000TVL, the largest image size is 1920 × 1080,
Resolution 200W, the most low illumination color 0.005Lux@F1.6, black and white 0.0005Lux@F1.6, 0Lux (infrared light on)
Gain control automatic / manual,
3D noise reduction support, 2D noise reduction support, signal-to-noise ratio ≥55dB.
White balance Automatic / Manual / Tracking / Outdoor / Indoor / Outdoor automatic / Sodium lamp automatic / Sodium lamp
Electronic shutter 1/3 ~ 1 / 30000s
Function Fog transmission support, backlight compensation support, wide dynamic support. Strong light suppression Support
Digital zoom 16 times, day and night mode automatic ICR filter color to black.
Focusing mode Automatic / semi-automatic / manual, focal length 5.0mm ~ 115mm, zoom speed about 3.5s.
Field of view Angle 61 ° ~ 2.8 ° (near focus to far focus), close range 100mm ~ 1000mm (near focus to far focus)
Optical zoom

16 times, aperture value F1.6 ~ F3.5, fill light mode infrared, fill light control override priority / manual (near light, far light), fill light distance ≥ 100 meters


Fill light angle

Variable according to focal length ,

Horizontal range: 0 ° ~ 360 ° continuous rotation, Keying speed Horizontal 0.1 °~ 200 ° / s,

Vertical 0.1 °~ 110 ° / s

Call preset point speed Vertical 240° / s ,

Horizontal 200 ° / s

Telephoto speed limit Support, 300 preset points. 8 automatic cruises, each can add 32 preset points, 5 automatic patrol tracks, 5 automatic line sweeps, 5 power-off memories, support for privacy, 24 blocks at most, and 8 blocks at the same time One screen, idle action preset point / auto patrol track / auto cruise / horizontal line scan, timed task preset point / auto patrol track / auto cruise / horizontal line scan, azimuth information display support

Features of Video Monitor System


1.Built-in infrared fill light, distance ≥100 m, support 16 times optical zoom

2.Maximum support for 1920 × 1080 @ 30fps real-time video output

3.Support multiple behavior detection of tripwire intrusion and regional intrusion items

4.MAC white list, humanized monitoring confidentiality and authority management functions

5.Support various network protocols such as GB / T 28181, ONVIF, CGI, etc., networking is more convenient

CMOS Crane Hook Camera 0
