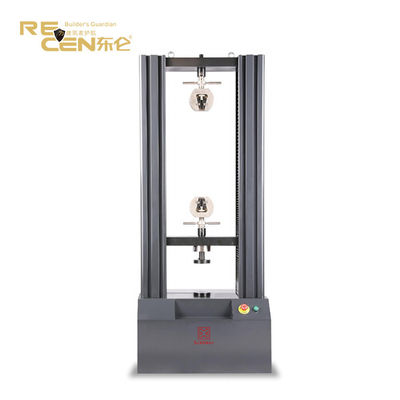

Electronic Universal Tensile Testing Machine Computerized Material Testing

Basic Information
Place of Origin: China
Brand Name: RECEN
Certification: CE, ISO9001, SGS
Model Number: RC-TM-001
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Plywood packing
Delivery Time: 5-10 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets per month
Detail Information
Power: Electronic,Hydraulic Usage: Compression Testing Machine,Universal Testing Machine
Warranty: 12 Months Product Name: Testing Machine
Weight: Around 1500kg Accuracy: 0.5 Grade
High Light:

building material testing equipment


cement testing machine

Product Description

Computerized Material Testing Equipments Electronic Universal Tensile Testing Machine



Product Profile


  This testing machine is adapted to domestic advanced technology, professionally designed data acquisition and amplification liquid crystal display system and microcomputer data processing system. The equipment has multiple testing capabilities for various metals, non-metallic materials such as stretching, compression, bending and shearing. Widely used in aerospace, metallurgy, petrochemical, machinery manufacturing and other industries, the maximum test force value, breaking force value, yield strength, upper and lower yield strength, tensile strength can be automatically obtained according to GB, JIS, ASTM, DIN, ISO and other standards Test data such as strength, compressive strength, elongation at break, tensile modulus of elasticity, flexural modulus of elasticity; also suitable for teaching and scientific research in colleges and universities.


Control Box



Control Box


  The main engine adopts the oil cylinder under-mounted main engine, the stretching space is located above the main engine, and the compression and bending test space is located between the lower crossbeam above the main engine and the workbench.

Transmission system


  The lower jaw base is lifted and lowered by a motor through a reducer, a chain drive mechanism, and a screw pair drive, to achieve adjustment of stretching and compression space, and the clamping method is hydraulic clamping.

Hydraulic system


The hydraulic principle is a load-adapted oil-inflow throttle speed control system, and a manual valve controls the test process.The hydraulic oil in the oil tank drives the high-pressure gear pump into the oil passage through the motor, flows through the check valve, 10μ high-pressure oil filter, differential pressure valve group, oil delivery valve, and enters the oil cylinder. By manually controlling the opening size of the oil delivery valve, the flow into the cylinder is controlled to meet the loading requirements. After the test is completed, open the oil return valve to unload and return the cylinder.


Maximum test force: 300KN (30 tons)
Measuring range: 2% -100% (optional 0.4% -100%)
Test machine accuracy level: 1 level (optional 0.5 level)
Test force accuracy: better than ± 1% of indicated value
Beam displacement measurement: resolution is 0.01mm
Deformation accuracy: better than ± 1%
Speed range: 1-150mm / min
Test space: 600mm
Host form: door frame structure
Weight: about 1500Kg
Working environment: room temperature ~ 45 ℃, humidity 20% ~ 80%
Stretching fixture: flat jaws: one pay; or round jaws: one pay;
Compression attachment: one set
Bending accessories: one set
Machine form: portal


Electronic Universal Tensile Testing Machine Computerized Material Testing 0Electronic Universal Tensile Testing Machine Computerized Material Testing 1
