| Place of Origin: | China |
|---|---|
| Brand Name: | RECEN |
| Certification: | CE, ISO9001, SGS |
| Model Number: | RC-SM-0010 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Cartons |
| Delivery Time: | 5-10 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets per month |
| Product Name: : | Zero Fire Switch. | Product Size: : | 86 × 86 × 32mm. |
|---|---|---|---|
| Power Supply Mode: : | AC100-240V 50/60HZ. | Working Temperature:: | -10 ℃ ~ 50 ℃. |
| Communication Method: : | ZigBee. | Communication Distance: : | 80-120m (empty And Unsheltered). |
| High Light: | smart home control system,home automation control systems |
||

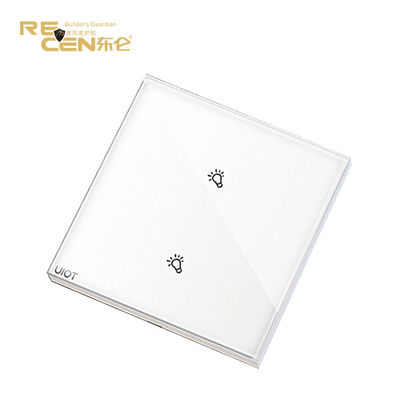

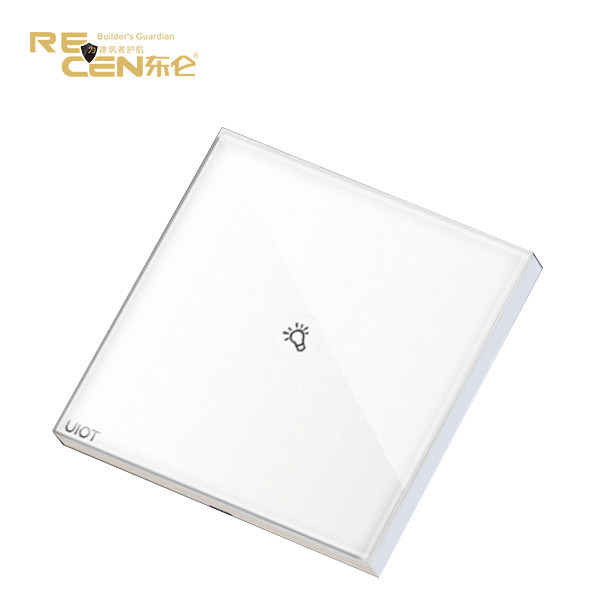

Smart House Control Intelligent Home Touch Four Scene Panel Lighting Control
Product Profile
Ultra-thin touch series
Switch | Scene | Curtain motor
One-click toggle custom scene mode
Thickness 6.5mm creates extremely thin myth
The anti-surge switch strengthens the capacitive load capacity, minimizes the interference of the home power grid, prevents the instability of other equipment caused by switching lights, and effectively improves the life of LED lamps and lanterns.
Specification
| Product name: Zero fire switch. |
| Product size: 86 × 86 × 32mm. |
| Power supply mode: AC100-240V 50/60HZ. |
| Working temperature: -10 ℃ ~ 50 ℃. |
| Communication method: ZigBee. |
| Communication distance: 80-120m (empty and unsheltered). |
|
Single load: resistance ≤ 800W; inductance and capacitance ≤ 800W |
| Product name: Motor control panel. |
| Product size: 86 × 86 × 32mm. |
| Rated voltage: AC100-240V 50/60HZ. |
| Working temperature: -10 ℃ ~ 50 ℃. |
| Communication method: ZigBee. |
| Communication distance: 80-120m (empty and unsheltered). |
| Motor load: ≤ 200W. |
| Product name: Four-button scene. |
| Product size: 86 × 86 × 32mm. |
| Power supply mode: AC100-240V 50/60HZ. |
| Working temperature: -10 ℃ ~ 50 ℃. |
| Communication method: ZigBee. |
| Communication distance: 80-120m (empty and unsheltered). |
| Product name: LCD scene panel. |
| Product size: 86 × 86 × 32mm. |
| Screen size: 2.4 inches. |
| Product material: toughened glass. |
| Installation method: Wall-embedded installation (standard 86 pre-embedded box). |
| Mode of operation: touch button. |
| Rated voltage: AC100-240V 50/60Hz. |
| Communication method: ZigBee. |
| Communication distance: 80-120m (empty and unsheltered). |
| Working temperature: -10 ℃ ~ 50 ℃. |
