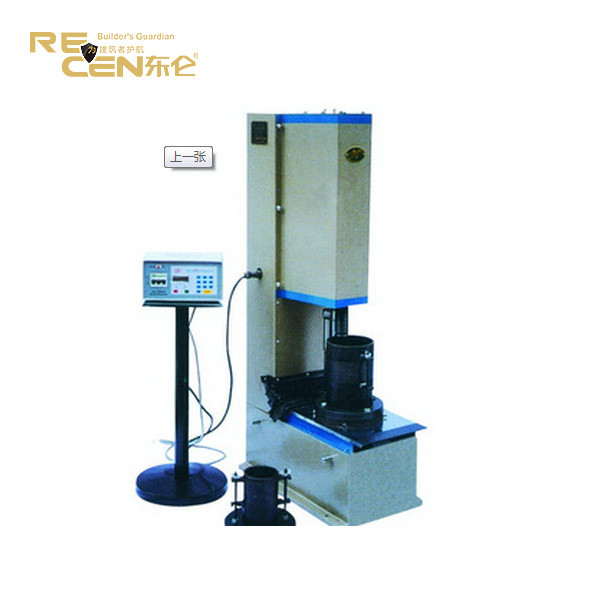

Multifunctional Digital Electric Soil Compactor Traffic Highways Use

Basic Information
Place of Origin: China
Brand Name: RECEN
Certification: CE, ISO9001, SGS
Model Number: RC-TM-012
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 5-10 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets per month
Detail Information
Power: Electronic Usage: Compression Testing Machine
Warranty: 12 Months Product Name: Testing Machine
Power Supply: 220V 50Hz Application: Telecom
High Light:

building material testing equipment


compression testing machine

Product Description

Soil Test Equipment Multifunctional Electric Soil Compactor Digital Electric Tester



Product profile


  • This instrument is suitable for foundation filling works of water conservancy dam projects, traffic highways, railway subgrades, airports, buildings, etc. The standard compaction method is used to determine the relationship between soil density and water content, thereby determining the maximum dry density and optimal water content of the soil rate



1. Falling height tracking device
2. Falling height error: ≤1%
3. Fan hammer head
4. Low speed synchronous motor, stable transmission
5. Simply replace the hammer head to automatically adjust the drop height
6. Automatic hit number control, automatic gap rotation of specimen mold
7. Two kinds of hammer quality to meet the requirements of use


Technical parameter



1. Hammer: 2.5Kg / Ø51mm, 4.5Kg / Ø51mm
2. Hammerhead: Sector, R = 74mm, а = 42.25 ° (Ø51mm)
3. Hammer drop height: 305mm and 457mm drop height optional
4. Sample mold size: Ø102 x 116mm, Ø152 x 116mm, Ø152 x 166mm
5. Power supply: 220V ± 10% 50Hz
6. Instrument size: 460 x 380 x 1500mm (L x W x H)
7. Instrument weight: 100kg


Multifunctional Digital Electric Soil Compactor Traffic Highways Use 0
