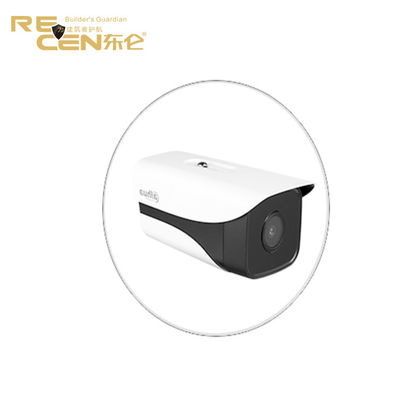

PIR Sensor Video Monitoring System

Basic Information
Place of Origin: China
Brand Name: RECEN
Certification: CE, ISO9001, SGS
Model Number: RC-105
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Cartons
Delivery Time: 5 - 10 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 SETS / YEAR
Detail Information
Type: Tower Crane Camera System Color: Black And White
Warranty: 12 Months Name: RC-SP
Function: Monitoring Device Operating Temperature: -20~+60 ℃
High Light:

PIR Sensor Video Monitoring System

,

Crane Video Monitoring System

,

PIR Sensor tower crane camera system


Product Description

Video Tower Crane Hook Camera System Security Camera Night Vision Video Monitor





Profile of the Video Monitor Camera System





Sensor type 1 / 2.8 inch CMOS, maximum resolution 200W, angle adjustment is not supported.
Minimum illumination 0.002Lux (color mode); 0.0002Lux (black and white mode), Double white light, maximum distance 20 me (Full color)
PIR sensor distance None, day and night conversion Electronic color to black, scanning method Progressive scanning, noise reduction 3D noise reduction.
WDR 120dB, signal-to-noise ratio> 56dB, gain control manual / auto, white balance manual / auto, backlight compensation support, selectable area, strong light suppression support, back focus adjustment not supported, external focus not supported
Lens parameters lens focal length 3.6mm / 6mm, lens interface M16, lens aperture F1.0 / F1.0, fixed aperture control,
Lens type Fixed focus, optical zoom None, minimum focusing distance 2.1m / 3.9.
Field angle

3.6mm: Horizontal 89.5 °; vertical 47.4 °; diagonal 106.9 °

6mm; Horizontal 53.8 °; vertical: 29.2 °; diagonal: 62 °

Audio parameters audio input None, audio output None
Video parameters video coding standards H.265; H.264; H.264H; H.264B; MJPEG
Video bit rate H265: 6K ~ 6.4Mbps H264 H264: 16K ~ 8Mbps
Video frame rate

50Hz

main stream (1920 × 1080 @ 25fps), auxiliary stream (704 × 576 @ 25fps), third stream (1920 × 1080 @ 14fps) 60Hz

main stream (1920 × 1080 @ 30fps) , Auxiliary stream (704 × 480 @ 30fps), third stream (1920 × 1080 @ 9fps)

Default code stream 4096kbps (1080P) at the default resolution
Alarm parameters alarm input none, alarm output none
Alarm linkage area intrusion, tripwire intrusion, item left / disappear, scene change, wandering detection, personnel gathering, rapid movement, parking detection; network disconnection; IP conflict; illegal access; movement detection; video occlusion; scene change; face Detection; voltage detection
Image settings Brightness; contrast; sharpness; saturation; gamma
OSD information overlay time; channel; geographic location; picture; font size
Image rotation mirroring and flipping Support image mirroring Image flipping Image rotation




Product feature

1.Wide dynamic effect with image noise reduction function, perfect day / night image display

2.Anti-shake function, adapt to a variety of environments

3.Quick installation structure, more convenient installation

4.Unique FD three-dimensional positioning function, more convenient, accurate and fast to capture targets

5.The combination of multiple network monitoring methods (mobile phone, WEB, client) makes it easier to use

6.Flexible network expansion capability, adapt to various network platform monitoring systems



PIR Sensor Video Monitoring System 0
