Slewing Encoder Tower Crane Anti Collision System Digital Code Wheel Multi Turn

Basic Information
Place of Origin: CHINA
Certification: ISO, 3C, CE
Model Number: GMX60R12/12E10R4B
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: Carton
Delivery Time: 7-10 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100 pcs/day
Detail Information
Name: Slewing Encoder Appearance: Metal Shell, Sealed Double Bearing Structure
Working Temperature: -2~85 ℃ Storage Temperature: -40—80 ℃
Protection Grade: IP65 (no Condensation, No Water Accumulation) Allowable Speed: 2400 Rpm
Working Voltage: 10~ 30V Continuous Turns: 1 ~ 4096 Turns
High Light:

crane communication system


overhead crane anti collision system

Product Description

Slewing Encoder Anti Collision Absolute Digital Code Wheel Multi-Turn Angle






Working voltage 10~ 30Vdc Polarity protection (recommended to use 24V power supply)
Current consumption <60mA (24V power supply) no load
Output signal RS485, Easypro free protocol, length and angle output can be set
Resolution 1 / 4096FS per turn
Continuous turns 1 ~ 4096 turns

RS485 signal to RS232 or USB to connect to the computer

EasyPro intelligent setting

Working temperature -25—85 ℃ Temperature range during programming 0 ℃ ~ 70 ℃
Storage temperature -40—80 ℃
Protection grade IP65 (no condensation, no water accumulation)
Allowable speed 2400 rpm
Vibration shock 20g, 10 ~ 2000Hz; 100g, 6ms
Connection cable 1 meter shielded cable radial side out (other forms can be ordered)
Appearance metal shell, sealed double bearing structure
Maximum shaft load 60N in radial direction and 40N in axial direction (for reference only)

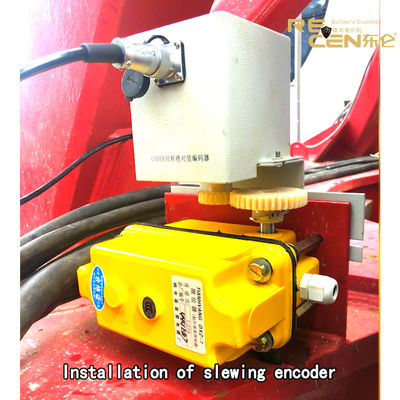

Slewing Encoder Tower Crane Anti Collision System Digital Code Wheel Multi Turn 0
