| Place of Origin: | China |
|---|---|
| Brand Name: | RECEN |
| Certification: | CE, ISO9001, SGS |
| Model Number: | RC-SM-007 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Cartons |
| Delivery Time: | 5-10 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets per month |
| Product Name: : | Zero Fire Switch. | Flame Retardant Grade:: | V-0. |
|---|---|---|---|
| Product Size: : | 74mm*119mm*53.8mm. | Rated Voltage: : | AC120V ± 10% 50 / 60HZ. |
| Working Temperature: : | -10 ℃ ~ 40 ℃. | Working Humidity: : | < 95%RH (does Not Condense). |
| High Light: | smart home control system,home automation control systems |
||
Wall Intelligent Push Button Switch Universal Dual Intelligent Switchwall Touch Switch
Product Profile
A slight press Control smart home
anytime, anywhere
Go out in a hurry, one button to solve the trouble of forgetting to turn off the lights
Turn off the lights at night, remote control, reduce noise, care for family sleep
The lighting of the whole house is under control
Changing the traditional single lighting control mode, the multicast function can turn on / off the load lights of different equipment at the same time, and realize the unified management of lamps and lanterns, which is mostly used in apartments and villas
Outfit both horizontally and vertically
Meet your home improvement environment
According to the needs of the actual situation, you can choose to install the thermostat horizontally or vertically
Connect to different air conditioning facilities (cooling, heating (electric auxiliary heating, oil and gas plumbing), fans)
LCD liquid crystal scene
Local control / remote control / scene linkage
Switch custom scene mode with one click
Seiko quality Multiple protection
VO fire grade material, multi-layer structure technology, flame retardant, corrosion and impact, safety, energy saving and intimate protection
Specification
| Product Name: Zero fire switch. |
| Flame retardant grade: V-0. |
| Product size: 74mm*119mm*53.8mm. |
| Rated voltage: AC120V ± 10% 50 / 60HZ. |
| Working temperature: -10 ℃ ~ 40 ℃. |
| Working humidity: < 95%RH (does not condense). |
| Communication method: IEEE802.15.4 (Zigbee). |
| Communication distance: 100m (open). |
| Load: resistive load ≤ 1800W. |
| Connection method: lead wire. |
| Product Name: Four-button scene panel. |
| Flame retardant grade: V-0. |
| Product size: 74mm*119mm*53.8mm. |
| Rated voltage: AC120V ± 10% 50 / 60HZ. |
| Working temperature: -10 ℃ ~ 40 ℃. |
| Working humidity: < 95%RH (does not condense). |
| Communication method: IEEE802.15.4 (Zigbee). |
| Communication distance: 100m (open). |
| Connection method: lead wire. |
| Product Name: Dimming switch. |
| Flame retardant grade: V-0. |
| Product size: 74mm*119mm*53.8mm. |
| Rated voltage: AC120V ± 10% 50 / 60HZ. |
| Working temperature: -10 ℃ ~ 40 ℃. |
| Working humidity: < 95%RH (does not condense). |
| Communication method: IEEE802.15.4 (Zigbee). |
| Communication distance: 100m (open). |
| Load: Tungsten filament lamp ≤ 600W. |
| Connection method: lead wire. |
| Product Name: Intelligent metering socket. |
| Flame retardant grade: V-0. |
| Product size: 74mm*119mm*53.8mm. |
| Rated voltage: AC120V ± 10% 50 / 60HZ. |
| Working temperature: -10 ℃ ~ 40 ℃. |
| Working humidity: < 95%RH (does not condense). |
| Communication method: IEEE802.15.4 (Zigbee). |
| Communication distance: 100m (open). |
| Load: resistive load ≤ 1800W. |
| Measurement accuracy: 1%. |
| Metering channel: independent 2 channels. |
| Connection method: lead wire. |

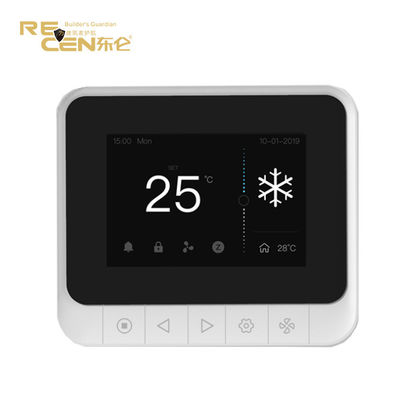

| Product Name: Intelligent thermostat. |
| Flame retardant grade: V-0. |
| Product size: 103.28*119.33*46mm. |
| Power supply: 24AC (50hz/60hz).Maximum 1A (single output).Maximum 3A (all output).Peak 5A. |
| Working temperature: -10 ℃ ~ 40 ℃. |
| Working humidity: < 95%RH (does not condense). |
| Communication method: IEEE802.15.4 (Zigbee). |
| Communication distance: 100m (open). |
| Connection method: lead wire. |
| Product Name: LCD liquid crystal scene. |
| Flame retardant grade: V-0. |
| Product size: 103.28*119.3346mm. |
| Rated voltage: AC120V ± 10% 50 / 60HZ. |
| Working temperature: -10 ℃ ~ 40 ℃. |
| Working humidity: < 95%RH (does not condense). |
| Communication method: IEEE802.15.4 (Zigbee). |
| Communication distance: 100m (open). |
| Connection method: lead wire. |
