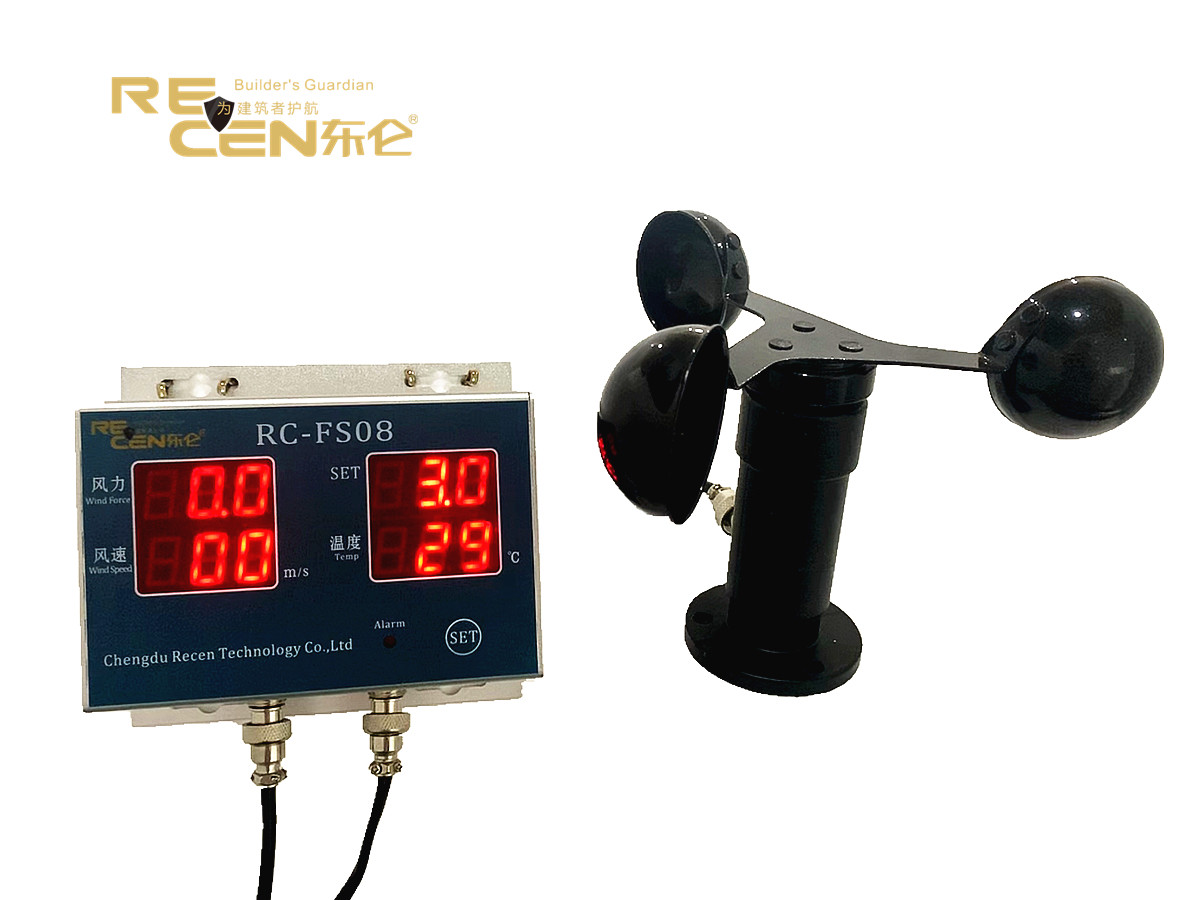

Wind Speed Anemometer 30m/S Tower Crane Anti Collision System

Annemometer Wind Speed Sensor Indicator Digital Display Monitor Safey Tower Crane

Wind speed index

1) Wind speed measuring range:0~30m/s

2) Measuring accurancy: ＜30m/s±(0.5+0.05v) / ＞30m 5%

3) Start-up wind speed: ＜0.2m/s

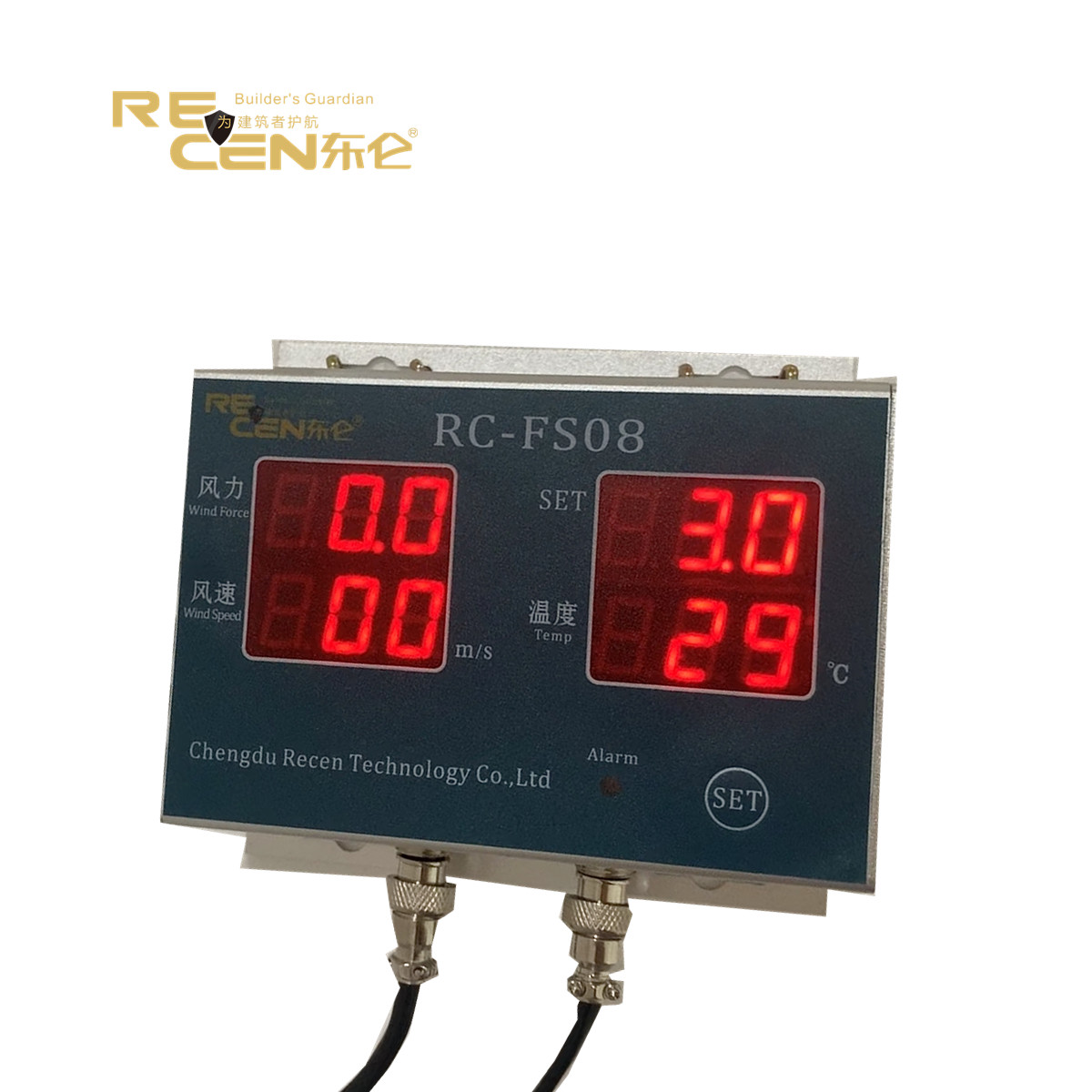

4) Parameters display:actual wind speed,wind scale,gust,temperature

Alarming limit value(default set):

1) Jack-up state: 4 level

2) Working state: 8 level

3) Limit value can be adjusted according to requirement(optional)

Voltage output:0-5V

Working temperature

1) Indicator: -30~65℃

2) Sensor: -30~65℃

Feature

1. The main board core adopts imported ATMEL chip,self-developed single chip and matched standard I/O card,in addition corresponding signal adjusted module,flexible alternation for data acquisition and output control,further enhanced reliability.
2. Low power consumption,digit circuit adopts ATMEL chip fully.
3. Power cut memory function,can run continuously for a long time.
4. The hardware is with WATC HDOG circuit,has strong anti-interference function in software.
5. Installation and debugging are all in key operation,it is very convenient to adjust for operator
6. With function of sound-light alarm.
