| Place of Origin: | CHINA |
|---|---|
| Certification: | ISO |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 10 pcs/day |
| Diameter: | 55mm | Output: | 0.5-5V |
|---|---|---|---|
| Temperature Compensation Range: | ﹣10 ℃ ~ 90 ℃ | Working Temperature Range: | ﹣20 ℃ ~ 75 ℃ |
| Sealing Grade: | IP67 | Cable: | Three-core Shielded Cable, 20m |
| Warranty: | 6 Months | ||
| High Light: | digital load indicator,crane sli system |
||

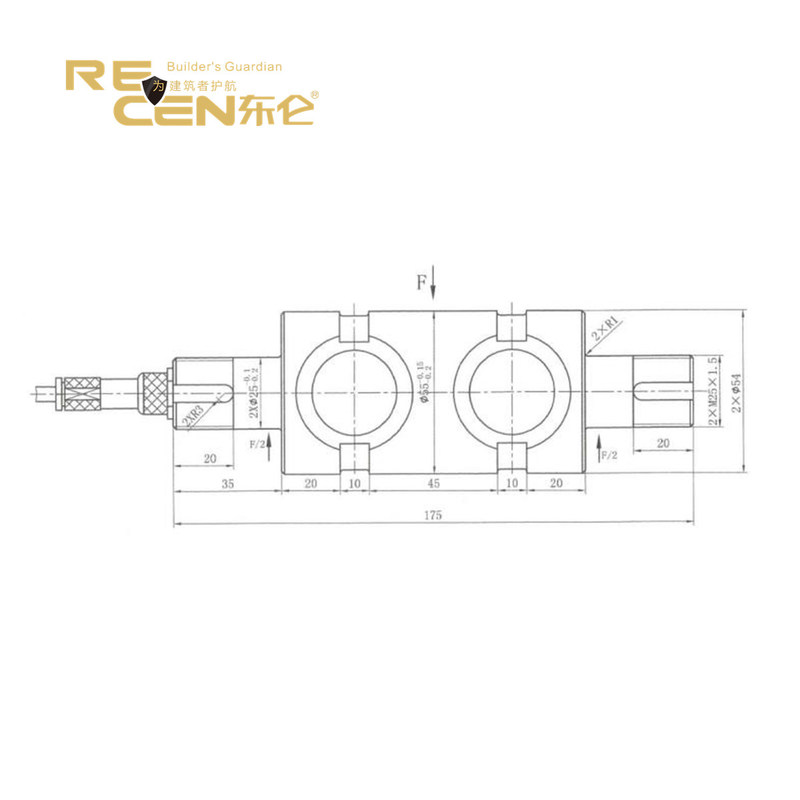

Load cell pins can be used for static or dynamic force measurement and are widely used in many fields.
When using a wire rope pulley for load measurement, replace the original pulley shaft with a load cell.
When measuring the pressure of the steel structure, the load cell is used as a forced connector.
When measuring the force on the hydraulic cylinder, the load cell acts as a fixed shaft.
Parameter
| 1 | Rated load | 7ton (customization avaible) |
| 2 | Output | 0.5-5V |
| 3 | Zero balance | ± 1% F.S |
| 4 | Comprehensive error | ± 0.5% F.S |
| 5 | Creep (30 minutes) | ± 0.1% F.S |
| 6 | Effect of 0° | ± 0.1% F.S / 10 ℃ |
| 7 | Sensitivity temperature effect | ± 0.1% F.S / 10 ℃ |
| 8 | Temperature compensation range | ﹣10 ℃ ~ 90 ℃ |
| 9 | Working temperature range | ﹣20 ℃ ~ 75 ℃ |
| 10 | Safe overload | 150% F.S |
| 11 | Connector | M12X1 waterproof aviation connector |
| 12 | Insulation resistance | ≥2000MΩ (50V DC) |
| 13 | Excitation voltage | 12V DC |
| 14 | Cable | Three-core shielded cable, 20m |
| 15 | Wiring definition |
1 Red wire (positive power supply), 2 Green wire (positive signal), 3 Black wire (negative power supply), 4 Shielding |
| 16 | Material | 40Cr |
| 17 | Sealing grade | IP67 |
| 18 | Accessories |
Nuts, brake pads, barrier sleeves are provided according to the needs |
