Load Cell Pin Load Moment Indicator Weight Sensor Shaft

Basic Information

Get Best Price Contact Now

Detail Information

Name:	Load Cell	Material:	Aluminium Alloy
Working Temperature:	-10℃~60℃	Working Humidity:	≤95% (25℃)
Power Supply:	AC170~240v (Customized As Requirement)	Warranty:	6 Months
High Light:	indicator spare parts , digital load indicator

Product Description

Aluminium Alloy Load Cell pin Load Moment Indicator weight sensor Shaft

High overload capacity;
High fatigue strength;
Good corrosion resistance;
Can be used in the temperature range of -25 ℃ to 75 ℃;
Protection grade IP67 (DIN40050);
No maintenance required;
Mainly used in analog and digital lifting measurement systems;
The sensor is designed to replace the original installation state in principle, and the sensor can be used to replace the connecting shaft at an appropriate position

Rated capacity: 20ton to 50ton	Operating temperature range: -30 to +70℃
Combined error: ±0.03% F.S	Maximum safe overload: 150% OF R.C
Non-repeatability: ±0.02% F.S	Ultimate safe overload: 200% OF R.C
Non-linearity: ±0.02% F.S	Recommended Excitation: 7 to 15V DC
Hysteresis error: ±0.02% F.S	Environment protection: IP68
Temperature effect on zero: ±0.02% F.S	Communication BPS: 9600/19200
Temperature effect on output: ±0.02% F.S	Communication Mode: RS 485
Compensated temperature range: -10 to +40℃	Material:Alloy steel(ZSFB-AD)； Stainless Steel(ZSFB-ADSS)

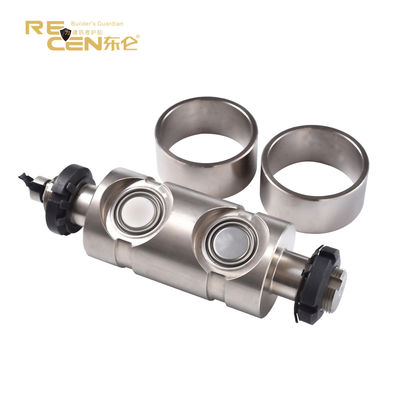

Load Cell Pin Load Moment Indicator Weight Sensor Shaft 0

Load Cell Pin Load Moment Indicator Weight Sensor Shaft 1

Load Cell Pin Load Moment Indicator Weight Sensor Shaft 2
